Amorphous Alloy Distribution Transformer
Ultra-low no-load loss distribution transformer with amorphous metal core. Energy-efficient design for utility energy-saving programs.
Product viewTechnical Parameters
Standard parameter ranges for this model. Special requirements can be assessed by our engineering team — contact us for custom specifications.
| Parameter | Standard Range |
|---|---|
| Rated capacity | 50–2500 kVA |
| Primary voltage | 6, 10, 11, 20, 35 kV |
| Secondary voltage | 0.4 kV |
| Frequency | 50 Hz or 60 Hz |
| Phase | 3-phase |
| Vector group | Dyn11, Dyn1 |
| Impedance | 4.0% – 6.0% |
| Cooling method | ONAN |
| Tap changer | Off-circuit (OCTC) ±2×2.5% |
| Insulation level | LI75AC35 / LI95AC50 |
| Temperature rise | 65K (oil); 65K (winding) |
| No-load loss | Up to 70% lower than conventional (per GB/T 25441) |
| Load loss | Per IEC 60076 / GB/T 6451 |
| Noise level | ≤50 dB (lower than conventional) |
| Protection level | IP20 indoor; IP44 outdoor |
| Applicable standards | IEC 60076, GB/T 25441, IEEE C57.12.00 |
| Ambient temperature | -25°C to +40°C |
| Altitude | ≤1000m |
| Accessories | Buchholz, temp gauge, breather, rollers |
Product Advantages
Verifiable benefits — not empty claims. Here’s exactly what you get when you choose JINXING.
70% Lower No-Load Loss
Amorphous core reduces no-load loss by up to 70% vs conventional silicon steel.
Energy Cost Savings
Significant energy savings over transformer lifetime — pays back investment.
Full Routine Test
IEC 60076-1 tests on every unit.
English Docs
Complete documentation in English.
Witness FAT
Third-party inspection welcome.
OEM Support
Private label available for utility programs.

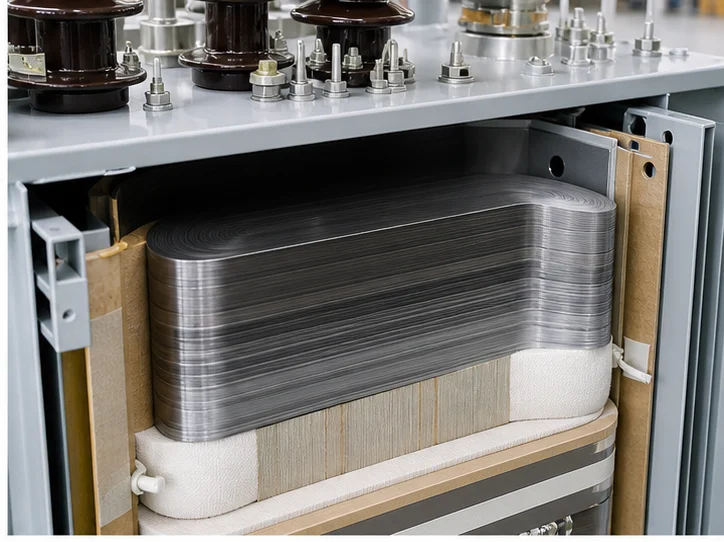

Details and componentsApplications
Where this transformer is used — connecting the product to real-world industry applications.
Utility Distribution
Energy-saving programs for utility distribution networks.
Commercial Building
Building power supply with reduced energy consumption.
Industrial
Factory distribution with energy efficiency targets.
Green City
Smart city and green building projects.
Quality Proof — 9-Step Manufacturing Process
Every transformer passes through 9 quality-controlled stages, from raw material to shipping. Full traceability with documentation at every step.

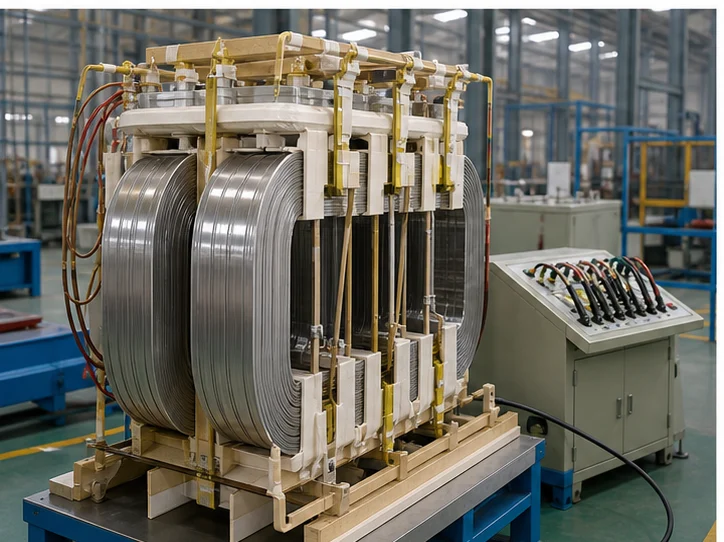

Manufacturing and testingMaterial Inspection
Raw material verification — core steel, copper, oil, accessories checked against certificates before production.
Core Cutting
CNC step-lap core cutting for low-loss grain-oriented silicon steel. Core loss measured before assembly.
Winding
Controlled winding tension, turn-count verification, and insulation paper application for each coil.
Assembly
Core-coil assembly with dimensional checks for fit, clearance, and clamping force.
Vacuum Drying
High-vacuum drying ovens remove moisture from insulation before oil impregnation.
Oil Filling
Filtered insulating oil with breakdown voltage >70kV/2.5mm and moisture <10ppm.
Final Testing
Full routine test per IEC 60076-1 — insulation, resistance, ratio, losses, withstand.
Packing
Sea-worthy export packing with shock-fixed crating for ocean shipping.
Shipping
On-time delivery with documentation — test reports, drawings, manuals in English.
Need a Custom Transformer Solution?
Our engineering team can assess non-standard voltage, capacity, impedance, or environmental conditions — and deliver a full proposal within 48 hours.
