Solar Power Plant Solution
Complete transformer solution for utility-scale and distributed solar PV plants — from inverter step-up to grid connection. Multi-winding, harmonic-tolerant, outdoor-ready designs for 1–500 MW installations.

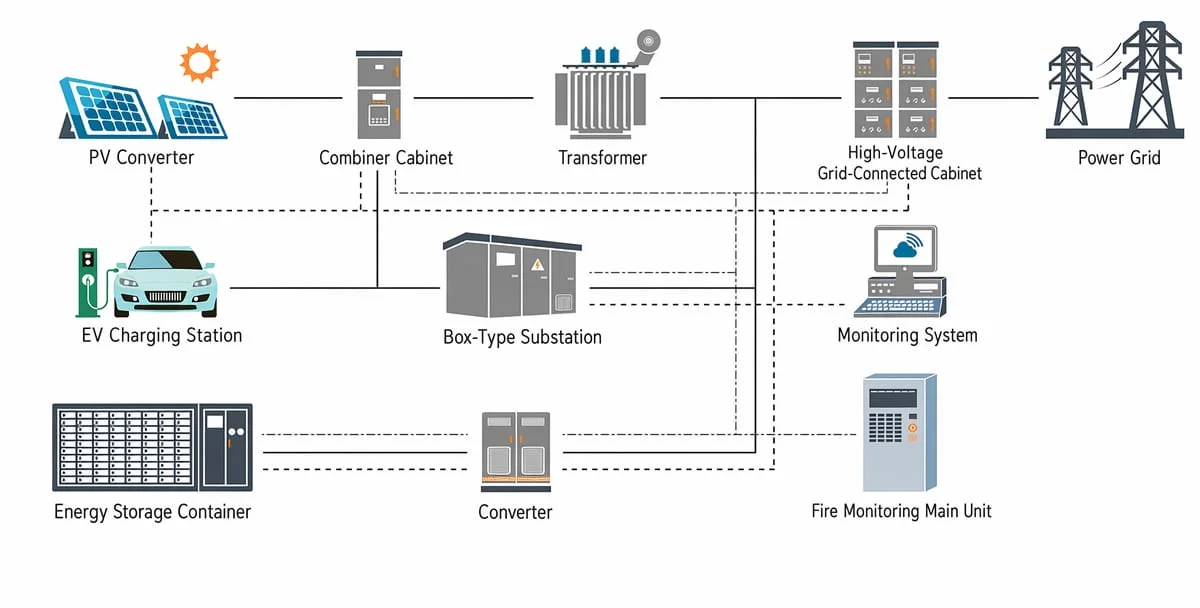

System Architecture: Inverter to Grid
PV panels → String/Central inverter → Step-up transformer → Collection grid → Main step-up transformer → Grid connection. JINXING provides transformers at every stage.

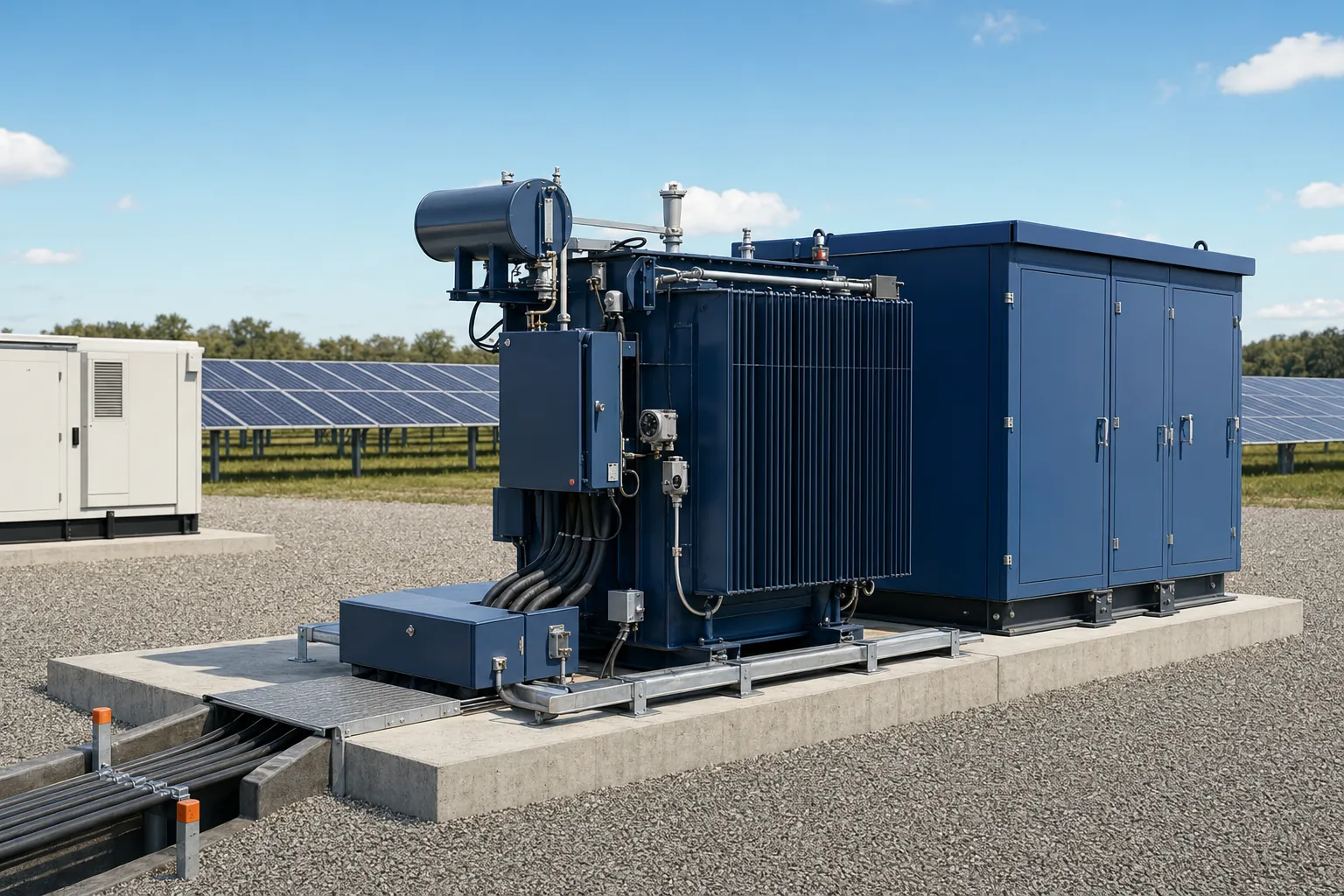

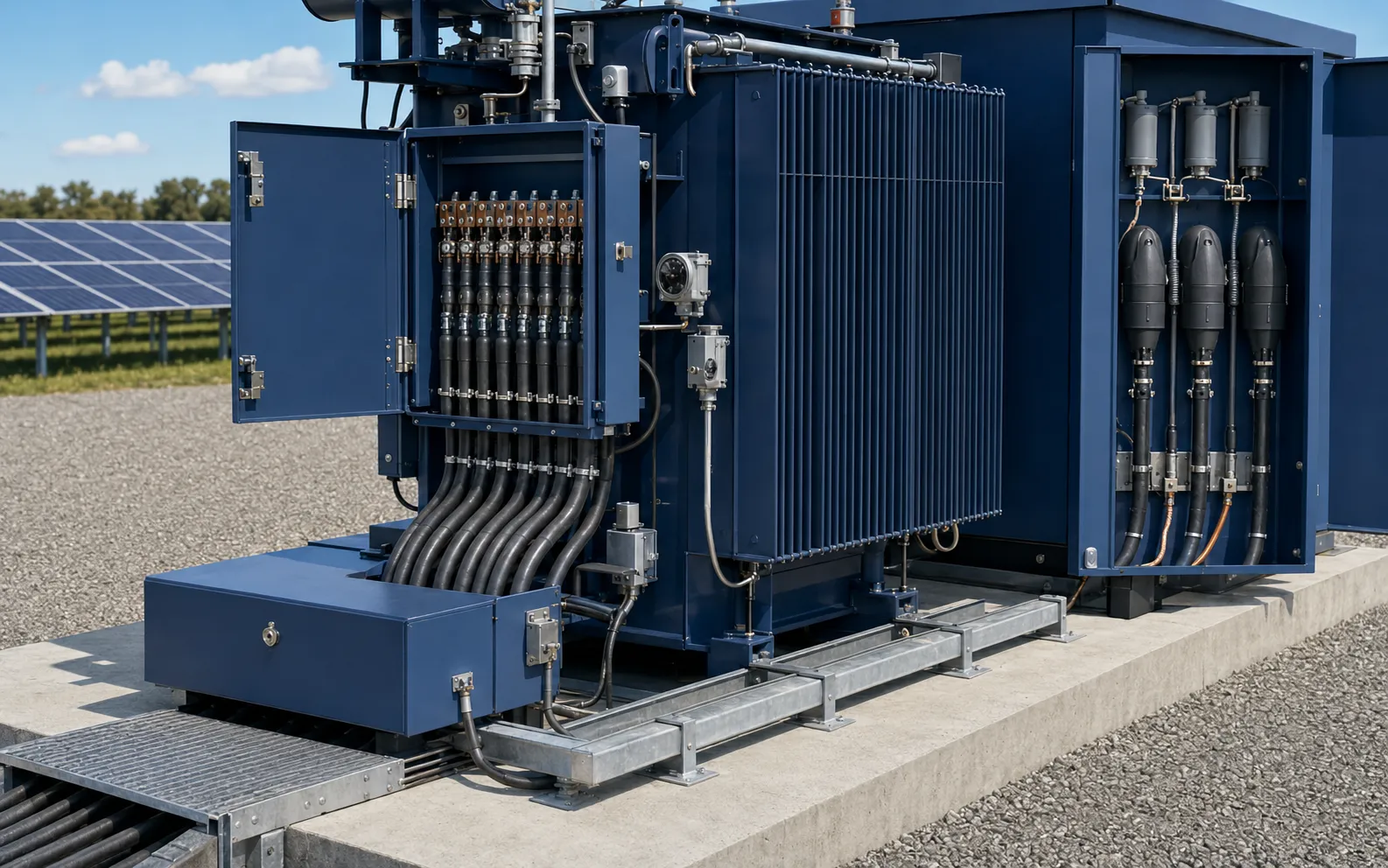

Inverter Step-up (0.4–0.8kV → 10–35kV)
Multi-winding transformers matched to central or string inverters. 1–4 MPPT inputs, harmonic-tolerant winding design.
Collection Grid (10–35kV)
Pad-mount or compact substations collecting power from multiple inverter transformers. Switchgear + protection integrated.
Main Step-up (35kV → 110/220kV)
Main power transformer stepping up to grid voltage. OLTC, full type test, witnessed FAT.
Customer Purchase Options
Transformer Only
You have switchgear and enclosure. We supply the transformer to your spec.
Transformer + Switchgear
Transformer matched with HV/LV switchgear, protection and monitoring.

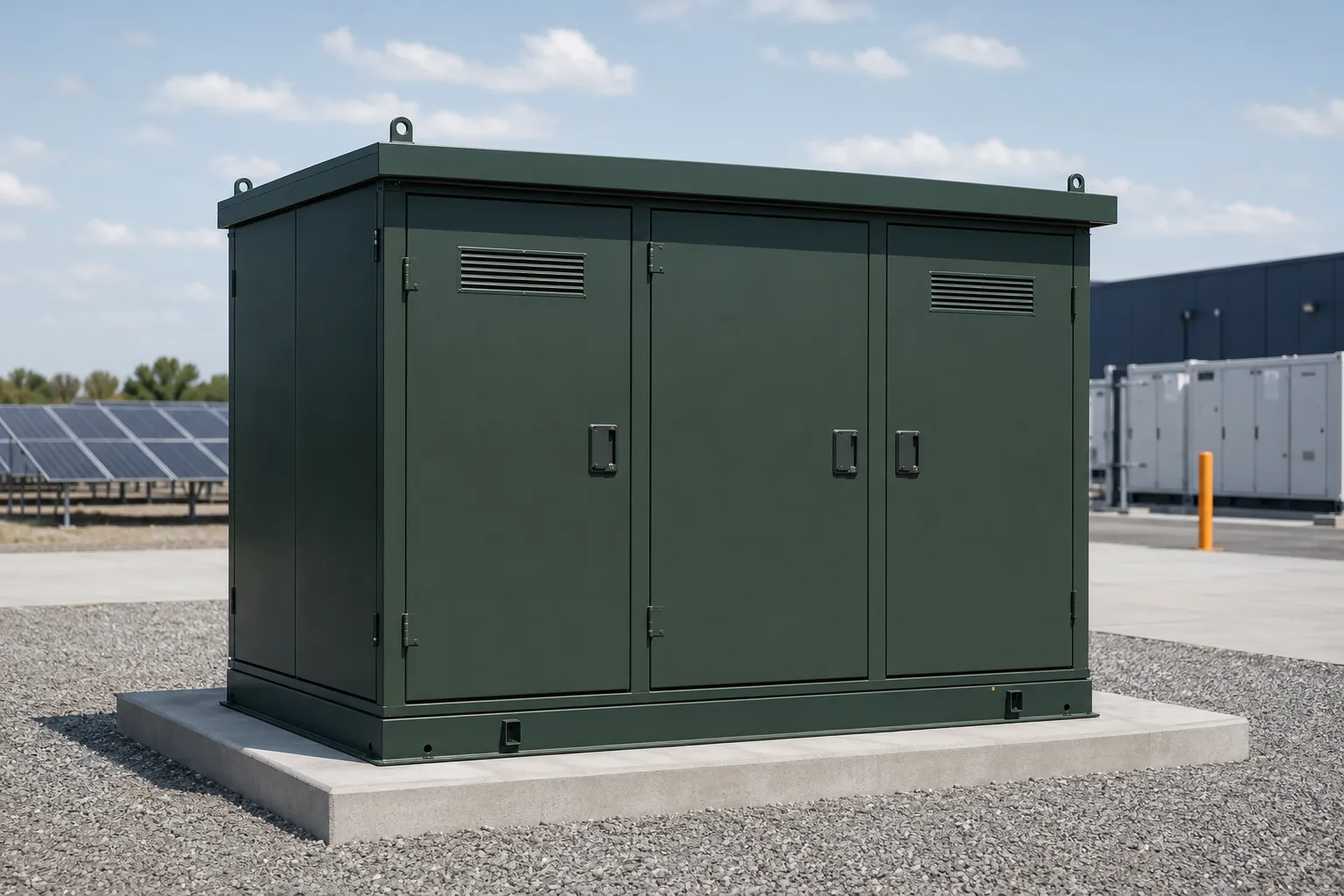

Pre-fabricated Box Substation
Complete substation: transformer + switchgear + enclosure, ready to install on site.
Design & Selection Support
Our engineers help you select the right transformer, winding config, and capacity for your plant.
Key Technical Parameters
Recommended transformer scope
Choose a proven starting point, then let our engineers adapt voltage, capacity, impedance, cooling, enclosure and documentation to the project.
Have a solar project?
Send us your plant specification, inverter details, and site conditions. We’ll propose the right transformer configuration within 48 hours.
Request a Solution →
