Compact / Pad-mount Substation
Pre-assembled substation: transformer + HV/LV switchgear + enclosure, ready to install. Outdoor, pad or pole mount.
Technical Parameters
Standard parameter ranges for this model. Special requirements can be assessed by our engineering team — contact us for custom specifications.
| Parameter | Standard Range |
|---|---|
| Rated capacity | 100–2500 kVA |
| HV voltage | 6, 10, 11, 20, 35 kV |
| LV voltage | 0.4 kV |
| Frequency | 50 Hz or 60 Hz |
| Phase | 3-phase |
| Vector group | Dyn11 |
| Impedance | 4.0% – 6.0% |
| Cooling method | ONAN |
| Tap changer | Off-circuit (OCTC) ±2×2.5% |
| Insulation level | LI75AC35 / LI95AC50 |
| Temperature rise | 65K (oil); 65K (winding) |
| No-load loss | Per IEC 60076 |
| Load loss | Per IEC 60076 |
| Noise level | ≤55 dB |
| Protection level | IP44 (standard); IP54 available |
| Applicable standards | IEC 60076, IEC 62271 (switchgear) |
| Ambient temperature | -25°C to +40°C |
| Altitude | ≤1000m |
| Accessories | HV load-break switch, LV breaker, fuse, metering, temp gauge |
Product Advantages
Verifiable benefits — not empty claims. Here’s exactly what you get when you choose JINXING.
Pre-assembled
Transformer + switchgear + enclosure — delivered ready to install.
Fast Installation
Drop on pad, connect cables, energize — minimal site work.
Tamper-Resistant
Locked enclosure — utility-grade security.
Outdoor Rated
IP44/IP54 enclosure for outdoor installation.
Full Routine Test
IEC 60076 + IEC 62271 tests on complete unit.
English Docs
Complete documentation including wiring diagrams.
Applications
Where this transformer is used — connecting the product to real-world industry applications.
Utility Distribution
Utility pad-mount distribution substations.
Industrial
Factory outdoor distribution — compact substation.
Solar Plant
PV farm collection — 10/0.4kV step-up substation.
Urban
Compact urban distribution — space-saving.
Construction
Temporary construction site power supply.

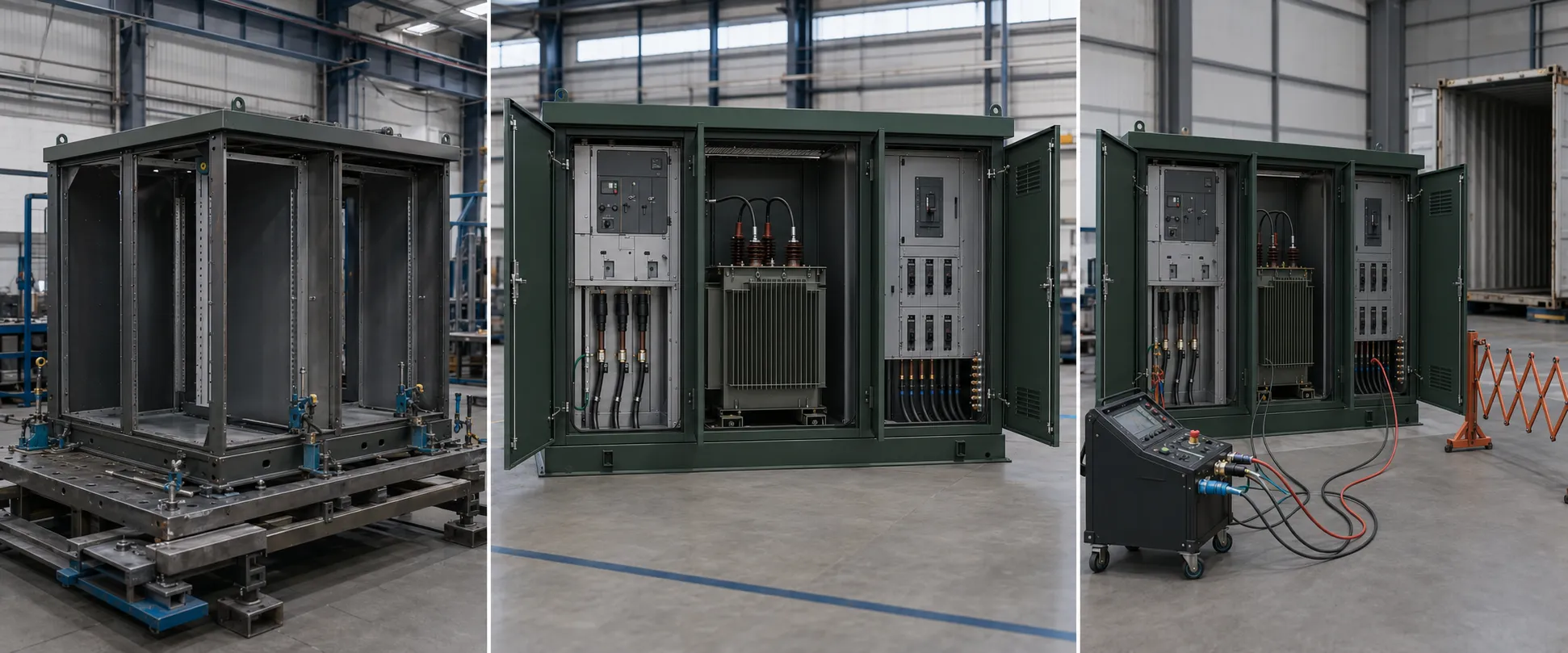

Quality Proof — 9-Step Manufacturing Process
Every transformer passes through 9 quality-controlled stages, from raw material to shipping. Full traceability with documentation at every step.
Material Inspection
Raw material verification — core steel, copper, oil, accessories checked against certificates before production.
Core Cutting
CNC step-lap core cutting for low-loss grain-oriented silicon steel. Core loss measured before assembly.
Winding
Controlled winding tension, turn-count verification, and insulation paper application for each coil.
Assembly
Core-coil assembly with dimensional checks for fit, clearance, and clamping force.
Vacuum Drying
High-vacuum drying ovens remove moisture from insulation before oil impregnation.
Oil Filling
Filtered insulating oil with breakdown voltage >70kV/2.5mm and moisture <10ppm.
Final Testing
Full routine test per IEC 60076-1 — insulation, resistance, ratio, losses, withstand.
Packing
Sea-worthy export packing with shock-fixed crating for ocean shipping.
Shipping
On-time delivery with documentation — test reports, drawings, manuals in English.
Need a Custom Transformer Solution?
Our engineering team can assess non-standard voltage, capacity, impedance, or environmental conditions — and deliver a full proposal within 48 hours.
