Rectifier & Furnace Transformer
High-current, impulse-load transformers for electrolysis, smelting, induction furnace, and industrial drive applications.
Technical Parameters
Standard parameter ranges for this model. Special requirements can be assessed by our engineering team — contact us for custom specifications.
| Parameter | Standard Range |
|---|---|
| Rated capacity | Custom (per project — typically 500–20000 kVA) |
| Primary voltage | 6, 10, 35 kV |
| Secondary voltage | Custom (low voltage, high current — e.g., 50–1000V) |
| Frequency | 50 Hz or 60 Hz |
| Phase | 3-phase (multi-phase for rectifier) |
| Vector group | Custom (per rectifier pulse number) |
| Impedance | Custom (per load characteristic) |
| Cooling method | ONAN / ONAF / OFWF (water-cooled available) |
| Tap changer | On-load (OLTC) or off-circuit (OCTC) — per regulation requirement |
| Insulation level | Per voltage class |
| Temperature rise | 65K (oil) — impulse-load thermal design |
| No-load loss | Per IEC 60076 / customer spec |
| Load loss | Per IEC 60076 (high-current design) |
| Noise level | Per IEC 60076-10 |
| Protection level | IP20 indoor; IP54 outdoor |
| Applicable standards | IEC 60076, IEC 61378 (converter transformers) |
| Ambient temperature | -25°C to +50°C |
| Altitude | ≤1000m |
| Accessories | OLTC, temp gauges, Buchholz, pressure relief, high-current bushings |
Product Advantages
Verifiable benefits — not empty claims. Here’s exactly what you get when you choose JINXING.

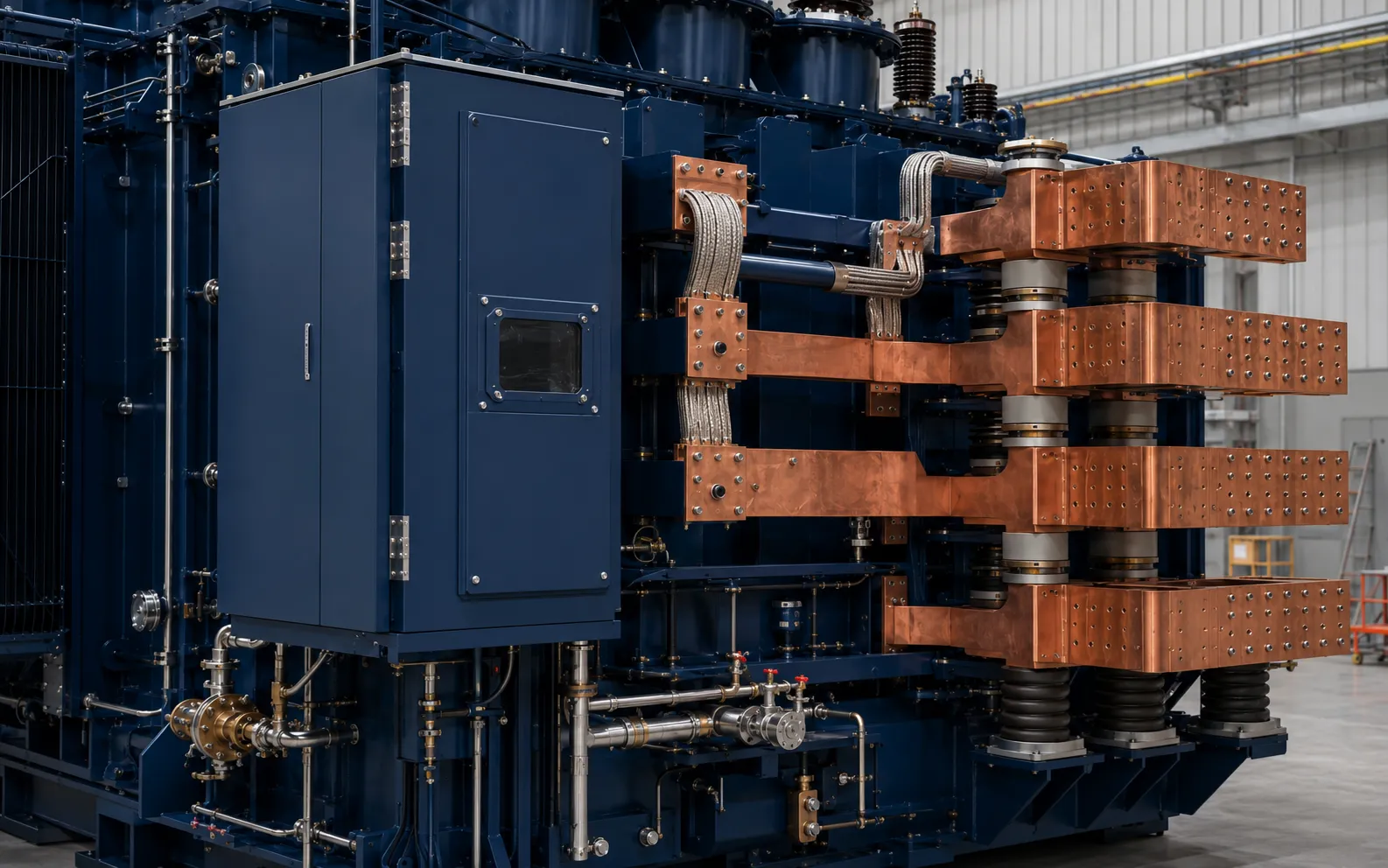

High-Current Design
Specialized winding and busbar design for high-current, low-voltage output.
Impulse-Load Ready
Reinforced winding clamping for furnace impulse and cyclic loads.
Multi-Pulse Rectifier
12-pulse, 24-pulse designs available for rectifier applications.
Full Routine Test
IEC 60076-1 + IEC 61378 converter tests.
English Docs
Complete documentation including current distribution analysis.
OEM Support
Built to customer drawings for equipment integration.
Applications
Where this transformer is used — connecting the product to real-world industry applications.
Electrolysis
Electrolysis plants — chlorine, aluminum, copper production.
Smelting
Arc furnace and induction furnace transformers for smelting.
Industrial Drives
DC drive power supply — rectifier transformers.
Process Industry
Chemical, steel, mining process — high-current supply.
Plating
Electroplating rectifier transformers.

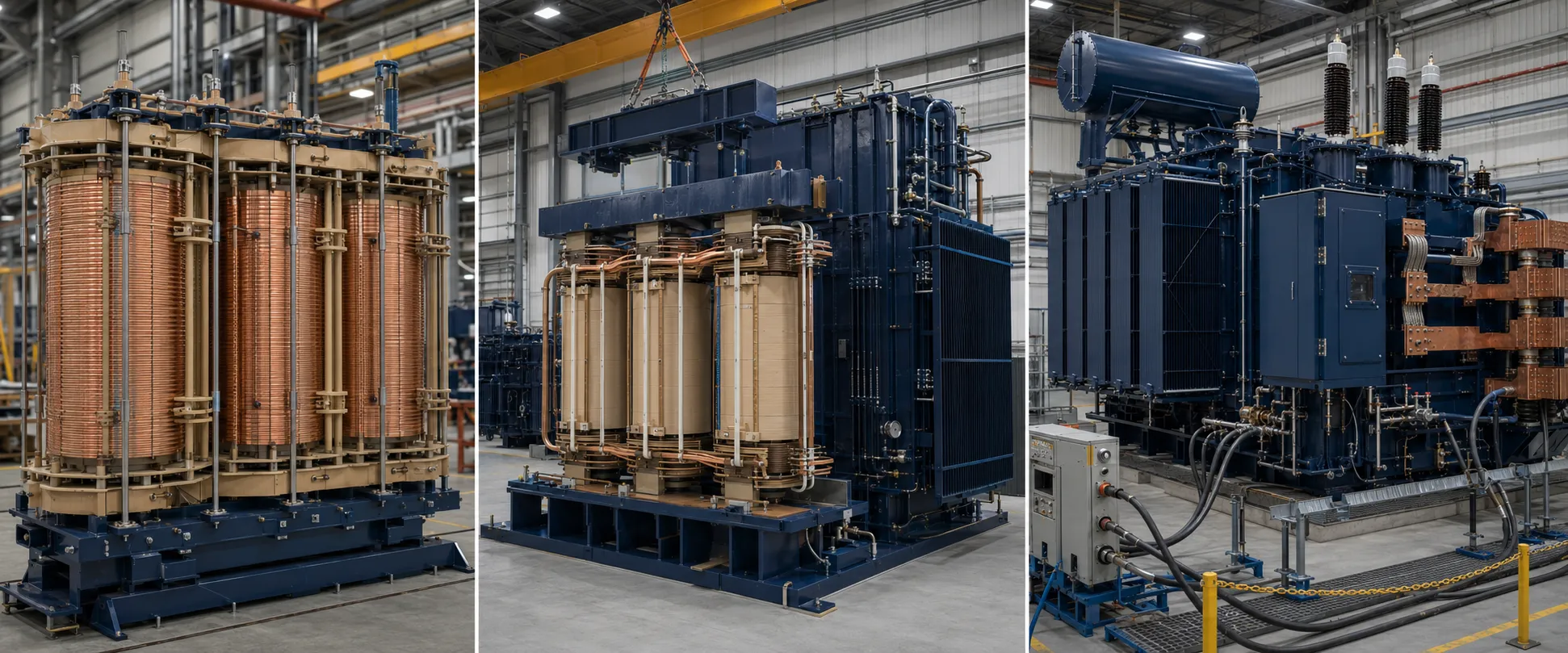

Quality Proof — 9-Step Manufacturing Process
Every transformer passes through 9 quality-controlled stages, from raw material to shipping. Full traceability with documentation at every step.
Material Inspection
Raw material verification — core steel, copper, oil, accessories checked against certificates before production.
Core Cutting
CNC step-lap core cutting for low-loss grain-oriented silicon steel. Core loss measured before assembly.
Winding
Controlled winding tension, turn-count verification, and insulation paper application for each coil.
Assembly
Core-coil assembly with dimensional checks for fit, clearance, and clamping force.
Vacuum Drying
High-vacuum drying ovens remove moisture from insulation before oil impregnation.
Oil Filling
Filtered insulating oil with breakdown voltage >70kV/2.5mm and moisture <10ppm.
Final Testing
Full routine test per IEC 60076-1 — insulation, resistance, ratio, losses, withstand.
Packing
Sea-worthy export packing with shock-fixed crating for ocean shipping.
Shipping
On-time delivery with documentation — test reports, drawings, manuals in English.
Need a Custom Transformer Solution?
Our engineering team can assess non-standard voltage, capacity, impedance, or environmental conditions — and deliver a full proposal within 48 hours.
