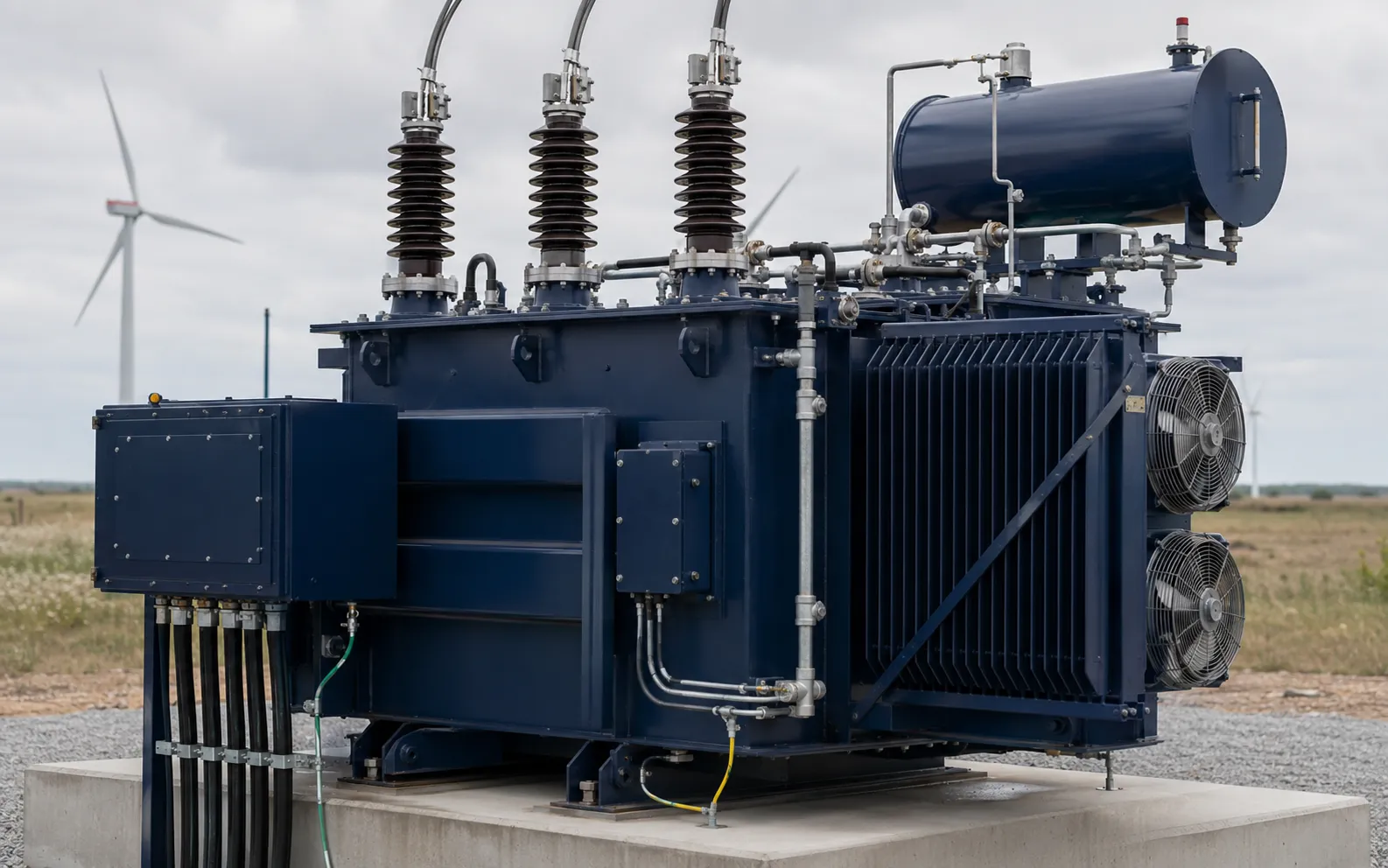

Wind Power Transformer
Step-up transformer for wind turbines. Vibration-damped, cold-climate tolerant, matched to 1–5MW turbine output.
Technical Parameters
Standard parameter ranges for this model. Special requirements can be assessed by our engineering team — contact us for custom specifications.
| Parameter | Standard Range |
|---|---|
| Rated capacity | Custom (typical: 1600–6300 kVA for 1–5MW turbines) |
| Primary voltage (LV) | 0.69 / 0.9 kV (turbine generator output) |
| Secondary voltage (HV) | 10, 20, 35 kV (collection grid) |
| Frequency | 50 Hz or 60 Hz |
| Phase | 3-phase |
| Vector group | Dyn11, Dyn5 |
| Impedance | 4.0% – 6.0% (K-factor adjusted) |
| Cooling method | ONAN / ONAF |
| Tap changer | Off-circuit (OCTC) ±2×2.5% |
| Insulation level | LI75AC35 / LI95AC50 |
| Temperature rise | 65K (oil); 65K (winding) |
| No-load loss | Per IEC 60076 (low-loss for AEP optimization) |
| Load loss | Per IEC 60076 (K-factor adjusted) |
| Noise level | ≤55 dB |
| Protection level | IP54/IP55 outdoor; vibration-damped |
| Applicable standards | IEC 60076, IEEE 1547, wind farm grid codes |
| Ambient temperature | -40°C to +45°C (cold-climate option) |
| Altitude | ≤1000m (up to 3000m option) |
| Accessories | Temp gauges, vibration dampers, breather, IP54 enclosure |
Product Advantages
Verifiable benefits — not empty claims. Here’s exactly what you get when you choose JINXING.
Vibration-Damped
Reinforced winding clamping and vibration dampers for turbine tower installation.
Cold-Climate Ready
Designs available for -40°C ambient — extreme cold tolerance.
High Altitude
Up to 3000m with derating — for mountain wind farms.
Converter-Compatible
K-factor rated for converter-fed harmonic loads.
Full Routine Test
IEC 60076-1 tests on every unit.
English Docs
Complete documentation including vibration test report.
Applications
Where this transformer is used — connecting the product to real-world industry applications.
Onshore Wind
Onshore wind farm turbine step-up transformers.
Offshore Wind
Offshore platform transformers (marine-grade option).
Collection Grid
Wind farm 10/20/35kV collection grid.
Mountain Wind
High-altitude wind farm installations.
Quality Proof — 9-Step Manufacturing Process
Every transformer passes through 9 quality-controlled stages, from raw material to shipping. Full traceability with documentation at every step.
Manufacturing and quality testingMaterial Inspection
Raw material verification — core steel, copper, oil, accessories checked against certificates before production.
Core Cutting
CNC step-lap core cutting for low-loss grain-oriented silicon steel. Core loss measured before assembly.
Winding
Controlled winding tension, turn-count verification, and insulation paper application for each coil.
Assembly
Core-coil assembly with dimensional checks for fit, clearance, and clamping force.
Vacuum Drying
High-vacuum drying ovens remove moisture from insulation before oil impregnation.
Oil Filling
Filtered insulating oil with breakdown voltage >70kV/2.5mm and moisture <10ppm.
Final Testing
Full routine test per IEC 60076-1 — insulation, resistance, ratio, losses, withstand.
Packing
Sea-worthy export packing with shock-fixed crating for ocean shipping.
Shipping
On-time delivery with documentation — test reports, drawings, manuals in English.
Need a Custom Transformer Solution?
Our engineering team can assess non-standard voltage, capacity, impedance, or environmental conditions — and deliver a full proposal within 48 hours.
