Pole-mounted Transformer
Overhead distribution transformer for utility rural/urban networks. Lightweight, corrosion-resistant, single or three-phase.
Product viewTechnical Parameters
Standard parameter ranges for this model. Special requirements can be assessed by our engineering team — contact us for custom specifications.
| Parameter | Standard Range |
|---|---|
| Rated capacity | 5–315 kVA (single-phase: 5–167 kVA; three-phase: 10–315 kVA) |
| Primary voltage | 6, 10, 11, 15, 20, 35 kV |
| Secondary voltage | 0.4 kV / 0.23 kV (single-phase) |
| Frequency | 50 Hz or 60 Hz |
| Phase | 1-phase or 3-phase |
| Vector group | Dyn11 (3-ph); Ii0 (1-ph) |
| Impedance | 3.5% – 5.0% |
| Cooling method | ONAN |
| Tap changer | Off-circuit (OCTC) ±2×2.5% |
| Insulation level | LI75AC35 / LI95AC50 |
| Temperature rise | 65K (oil); 65K (winding) |
| No-load loss | Per IEEE C57.12.00 / IEC 60076 |
| Load loss | Per IEEE C57.12.00 / IEC 60076 |
| Noise level | ≤50 dB |
| Protection level | IP44 (outdoor) |
| Applicable standards | IEEE C57.12.00, IEC 60076 |
| Ambient temperature | -25°C to +40°C |
| Altitude | ≤1000m |
| Accessories | Hanging brackets, fuse cutout, lightning arrester, grounding |
Product Advantages
Verifiable benefits — not empty claims. Here’s exactly what you get when you choose JINXING.
Lightweight
Designed for pole mounting — easy installation on utility poles.
Corrosion-Resistant
Hot-dip galvanized or stainless steel hardware for outdoor life.
Full Routine Test
IEEE/IEC tests on every unit.
48h Quote
Standard products in 48 hours.
English Docs
Complete documentation in English.
OEM Support
Private label for utility distributors.

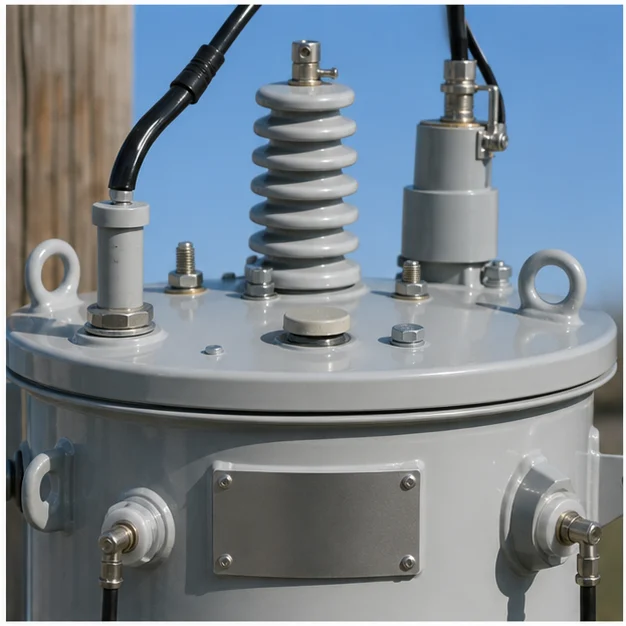

Details and componentsApplications
Where this transformer is used — connecting the product to real-world industry applications.
Rural Distribution
Utility rural overhead distribution networks.
Urban Area
Urban overhead distribution — pole-mounted.
Residential
Residential power supply — single-phase units.
Agricultural
Agricultural irrigation and rural electrification.
Quality Proof — 9-Step Manufacturing Process
Every transformer passes through 9 quality-controlled stages, from raw material to shipping. Full traceability with documentation at every step.

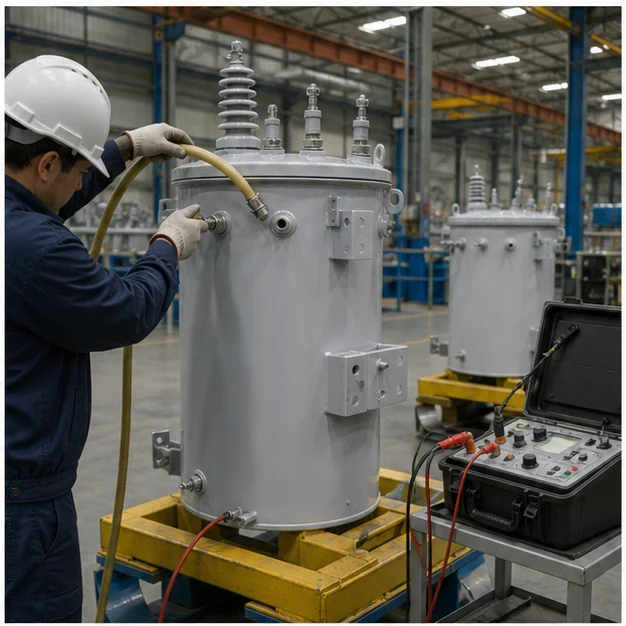

Manufacturing and testingMaterial Inspection
Raw material verification — core steel, copper, oil, accessories checked against certificates before production.
Core Cutting
CNC step-lap core cutting for low-loss grain-oriented silicon steel. Core loss measured before assembly.
Winding
Controlled winding tension, turn-count verification, and insulation paper application for each coil.
Assembly
Core-coil assembly with dimensional checks for fit, clearance, and clamping force.
Vacuum Drying
High-vacuum drying ovens remove moisture from insulation before oil impregnation.
Oil Filling
Filtered insulating oil with breakdown voltage >70kV/2.5mm and moisture <10ppm.
Final Testing
Full routine test per IEC 60076-1 — insulation, resistance, ratio, losses, withstand.
Packing
Sea-worthy export packing with shock-fixed crating for ocean shipping.
Shipping
On-time delivery with documentation — test reports, drawings, manuals in English.
Need a Custom Transformer Solution?
Our engineering team can assess non-standard voltage, capacity, impedance, or environmental conditions — and deliver a full proposal within 48 hours.
